Specifications | Accuracy |
Application sensor | Strain guage sensor (350Ω or 700Ω) |
Sensor authorized voltage (the number of Loadcell connection) |
DC 5V |
Zero adjustment range | 100% F·S (Auto Zero) |
Input signal | 0.5 ~ 3.5mV/V |
Display | -19999~99999 |
Sampling speed | Appox 15 times/sec |
Character height | 7 Segment 5 digit LED 14mm |
Decimal point | Push button setup |
Low pass filter | 10Hz, 100Hz, 1KHz, W/B |
Temperature Characteristic | ±10ppm/℃ |
Analog output | DC 0 ~ ±10V (Option 4-20mA) |
Relay output | Contact capacity : AC250V-0.25A, AC125V-0.5A, DC24V-1A |
Power source used | AC 90 ~ 240V 50/60Hz 8VA |
Usage temperature range | -10℃ ~ 60℃ |
Humidity | less than 80% RH (no dew condensation) |
Input/Output connector | Screw terminals |

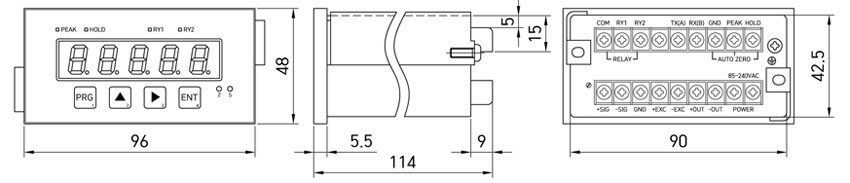

Sizes | 96×48mm |
Panel cutting size | 91×43mm |
Option | OP-03 : RS485 OP-04 : 4-20mA Analog output OP-05 : DAC Analog output OP-07 : ETHERNET OP-08 : CAN OPEN. OP-10 : Power DC24V 0.3A |
