DN-300

Show totals separately with 2ch indicator.

Left and right values and totals are displayed separately

Analog and contact outputs for each channel and sum individually.

Calibration method by actual load and calibration with rated output of sensor.

Watch dog

Display part and analogue zero by auto zero (DAC)

Analog out(DAC)

Relay output : Hi, Low, NG, OK.

Suitable for use with model RTB15

Option

OP-02 : RS232C serial interface (Standard installed)

OP-03 : RS485 Multi drop interface

WP Editor :

Show totals separately with 2ch indicator.


Left and right values and totals are displayed separately


Analog and contact outputs for each channel and sum individually.


Calibration method by actual load and calibration with rated output of sensor.


Watch dog


Display part and analogue zero by auto zero (DAC)


Analog out(DAC)


Relay output : Hi, Low, NG, OK.


Suitable for use with model RTB15


Option


OP-02 : RS232C serial interface (Standard installed)


OP-03 : RS485 Multi drop interface




Spec.     model

DN-300

SIGNAL

1 ~ 3mV/V

ANALOG OUT

DC 0 ~ ±10V, (4 ~ 20mA option)

EXCITATION

5V

Available Sensors

Strain gauge type sensor (bridge 120W, 350W, 700W)

Max. Indication

-19999 ~ +99999

A/D Converter

24bit 1000 times/sec

D/A Converter

16 bit

Temp.

ZERO

0.5μV/

SPAN

0.01%/

Indicator

7 segment  LED 14mm / 10mm

Status LED

Red LED 6 EA

Key switch

4EA

Communication

RS232C (A + B)

Comparison Output

Hi, Lo

Contact Capacity

AC 250V 5A

Temperature

-10℃~ 60, 80% RH or less (no condensation)

Weight

About 600g

Power supply

AC 90 ~ 240V, 50/60

Outer Diameter

97 × 97 × 141 mm (W × H × D)

Panel Cutting Size

92.5 × 92.5 mm

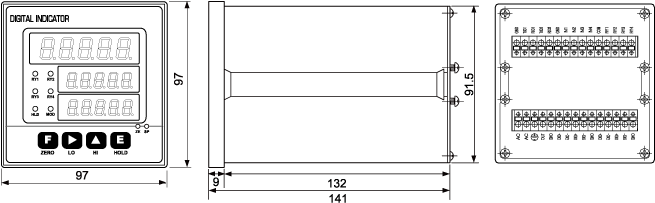

 Dimensions

 dn300 drw.gif
