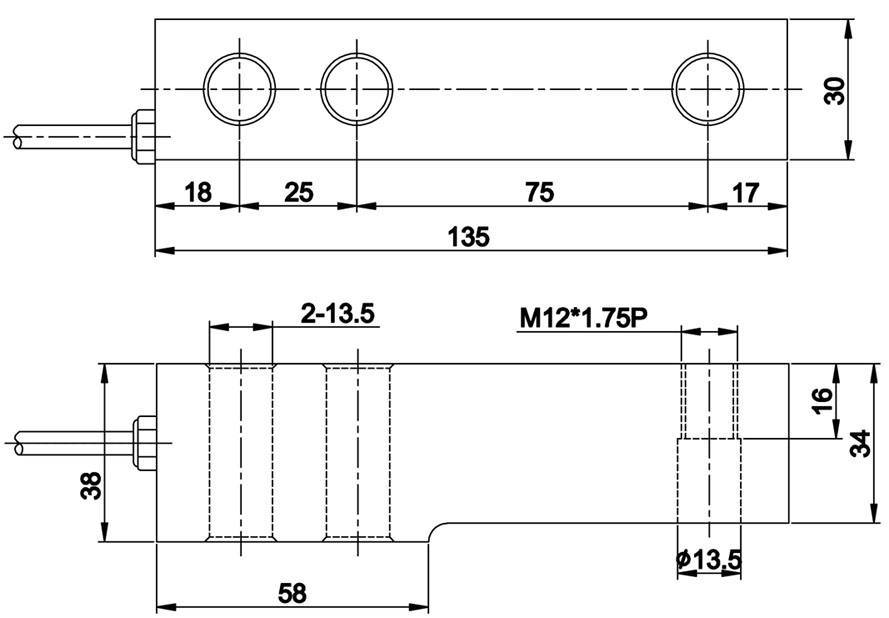

CPC3-T3

A compact and low cost, shear type compression load cell

It is a comparatively low cost shear type transducers with a high accurary of 0.03% R.O

Platform and Tank scale weighing.

WP Editor :

A compact and low cost, shear type compression load cell

It is a comparatively low cost shear type transducers with a high accurary of 0.03% R.O

Platform and Tank scale weighing.

Specifications		Accuracy
Rate	capacity (R.C)	3tf
Rate	output (R.O)	2mv/v±0.1%
Nonlinearity		0.03% of R.O.
Hysteresis		0.02% of R.O.
Creep(20min)		0.02% of R.O.
Repeatability		0.03% of R.O.
Zero balance		±5% of R.O.
Temperature effect	on rated output	0.02% of LOAD/10℃
Temperature effect	on zero balance	0.05% of R.O./10℃
Temperature range	compensated	-10~50℃
Temperature range	safe	-10~50℃
Terminal resistance	input	350 ±30Ω
Terminal resistance	output	350 ±3Ω
Insulation resistance bridge		2000MΩ
Excitation recommended		10V
Safe overload		150%
Cable length		Φ5±0.3mm 4core, 3m
