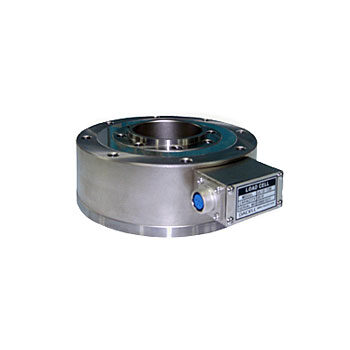

UL12

Canister, through-hole type.
Suitable for application in injection molding machines.

WP Editor :

Canister, through-hole type.

Suitable for application in injection molding machines.

Specifications

Specifications	Accuracy
Rated capacity	6tf~50tf (58.84kN~490.3kN)
Safe overload	150% R.C.
Non-linearity	0.6% R.O.
Hysteresis	0.6% R.O.
Repeatability	0.2% R.O.
Current output	4mA to 20mA (3 wires method, Load resistance 500 or less, at 24)
Power supply voltage	DC 24V
Temperature range, compensated	0℃ to 60℃
Temperature range, safe	-10℃ to 70℃
Temperature effect on zero balance	0.15%, R.O./10℃
Temperature effect on output	0.15%, LOAD/10℃
Cable	4 cores shielded 5m
Class of protection	Equivalent to IP64. (main body only)
Materials of the element	Alloy steel
Durability	10⁶ times with rated capacity

Dimensions Table

Model	Capacity	A	B	C	D	E	F	G	H	I	J	K	L	N	O	P	Q	R	S	Weight(kg)
UL12-T6	58.84kN	174	110	80	72	112	138	174	3	37	36	6	14	5	9	93	9	154	120	8
UL12-T8	78.45kN	174	110	80	72	112	138	174	3	37	36	6	14	5	9	93	9	154	120	8
UL12-T12	118kN	180	110	80	70	112	138	181	5	60	59.5	26	17	10	9	93	9	160	123	10
UL12-T15	147.1kN	180	110	80	70	112	138	181	5	60	59.5	26	17	10	9	93	9	160	123	10
UL12-T20	196.1kN	180	110	80	70	112	138	181	5	60	59.5	26	17	10	9	93	9	160	123	10
UL12-T27	265kN	275	180	135	110	182	208	276	7	60	59	26	17	10	13	160	13	247	171	19
UL12-T34	333.4kN	275	180	135	110	182	208	276	7	60	59	26	17	10	13	160	13	247	171	19
UL12-T50	490.3kN	275	180	135	110	182	208	276	7	60	59	26	17	10	13	160	13	247	171	19

★Specifications are subiect to change without notice.
