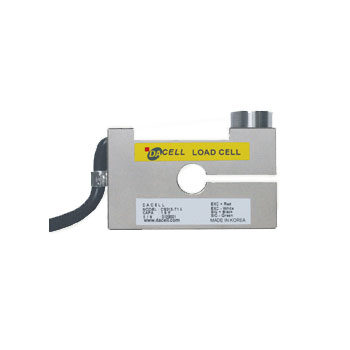

Load Cells

Dacell is providing ultra-precision load cells and various weighting and measuring products,
which can be used in various fields of industries, based on 20 years of experiences in manufacturing
of weighing and measuring products and with own superior technologies.

Small size. Force control application. Elevator weighing
WP Editor : Small size.
Force control application.
Elevator weighing






Specifications Accuracy
Rated capacity (R.C) 1500kgf
Rated output (R.O) 1.5mV/V ± 0.4%
Nonlinearity 2% of R.O.
Hysteresis 2% of R.O.
Repeatability 0.5% of R.O.
Zero balance ±1% of R.O.
Temperature effect, on rated output ±0.05% of LOAD/10℃
Temperature effect, on zero balance ±0.05% of R.O./10℃
Temperature range, compensated -10 ~ 40℃
Terminal resistance input 420 ± 5Ω
Terminal resistance output 350 ± 5Ω
Insulation resistance bridge/case 2000MΩ
Excitation recommended 10V
Safe overload 150% R.C
★Specifications are subiect to change without notice.
