Dacell is providing ultra-precision load cells and various weighting and measuring products,
which can be used in various fields of industries, based on 20 years of experiences in manufacturing
of weighing and measuring products and with own superior technologies.

DN-AM130

WP Editor :

SPECIFICATIONS TABLE
Specifications	Accuracy
Bridge voltage	DC 5V
Available Bridge Resister	350Ω, 750Ω
Zero adjustment range	100% F.S (Auto Zero)
Input Signal	1mV/V (2mV/V, 3mV/V : according to customer request)
D/A Converter	12bit
Analog out	4~20mA (0~10V : according to customer request)
Response frequency characteristic	10Hz
Service temperature	-10~60℃

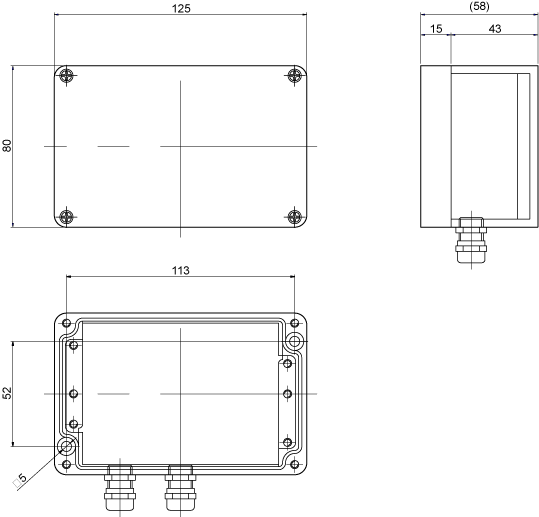

dimension (mm)	80x125x58 (WxLxH)
supply voltage	DC 24V
