信号放大器

Dacell is providing ultra-precision load cells and various weighting and measuring products,
which can be used in various fields of industries, based on 20 years of experiences in manufacturing
of weighing and measuring products and with own superior technologies.

DN-ACM100

动态应变放大器，它的设计和制造适用于仪表控制面板。

WP Editor : 动态应变放大器，它的设计和制造适用于仪表控制面板。

特征

内置单步过滤功能
内置自动温度补偿电路
易于调整零点和跨度

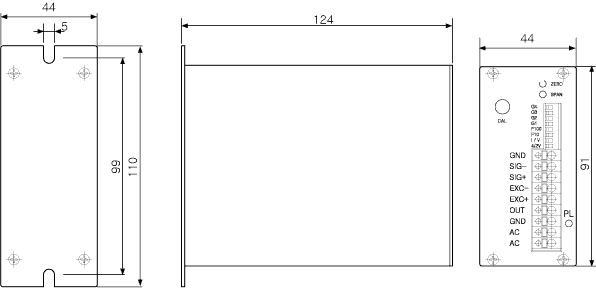

尺寸

规格

规格表
规格	参数值
电桥电压	AC 2Vrms 5㎑/10㎑
传感器要求	Differential trans LVDT (FULL/HALF TYPE)
额定输出	Voltage ±10V, Load resistance more than 200Ω
额定输出	Current 4~20㎃, Load resistance less than 300Ω
零点调整范围	10%, 10 rotations
灵敏度调整范围	1500 Multiplier
S/N率	51㏈
频率响应	DC-20㎑ (-3dB)
低通过滤器	10㎐, 100㎐, pass
非线性	0.1% F.S
使用温度范围	-10~60℃
允许电压变动率	Supply power ±5%
电压	AC 220V
