PT100
  • 口袋大小, 面板式
  • 方便更换纸张(翻盖式)
  • 高速打印(50mm/秒)
WP Editor :

  • 口袋大小, 面板式

  • 方便更换纸张(翻盖式)

  • 高速打印(50mm/秒)





规格

规格表
规格 参数值
型号 YJ 350 PT 100
打印方式 8PIN 串行击打式点阵 热感应
打印方向 BI-定向 -
列数 30/40 列 每行点数

384 点 40列
字符字体 8x16 / 5x8 203 DPI (8 Dots/㎜)
打印速度 1.6 line/sec Max 50㎜/sec
色带 类型 色带盒 -
LIFE (字符) ERC09 -
缓冲器 8K 字节 -
纸张 介质 摩擦 宽 57㎜ 卷 φ40
宽度 57㎜ x φ50
可靠性 MCBF 1.1 x 106 lines 8 x 106 line
打印头 1.1 x 106 lines read life :
操作条件 0~50℃ 25~85% RH
(无结露)
-
存放条件 -20~70℃ 10~85% RH
(无结露)
-
接口 串行 (RS233C) 或并行 (CENTRONICS接口) RS232C (300 ~12Kbps)
电源 DC 12V 1.5A AC 100/220V 50/60㎐

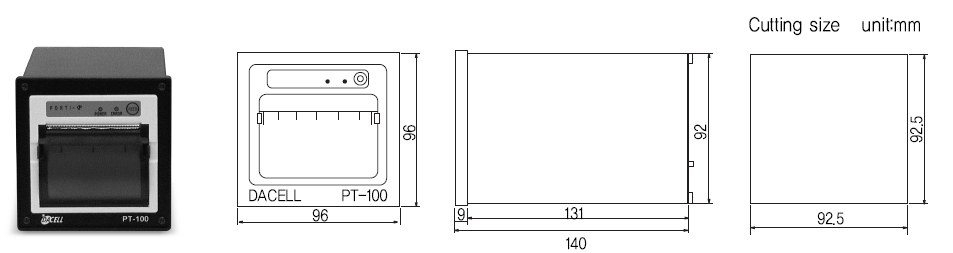

尺寸 120(W)x133(H)x100(D) ㎜ 96 (W)x96 (H)x140 (D)mm
重量 510g 500g
安装类型 面板式安装 面板式安装
