CMM92, CMM97

Small-Sized Compression Load Cell. Super compact and lightweight. Competitive price.

WP Editor : Small-Sized Compression Load Cell.

Super compact and lightweight.

Competitive price.

Specifications	Accuracy
Rated capacity (R.C.)	1kgf , 2 kgf , 5kgf , 10kgf , 20kgf , 20~50kgf(CMM97)
Rated output (R.O.)	0.5 ~1.2mV/V
Nonlinearity	±1.0% R.O.
Hysteresis	±1.0% R.O.
Repeatability	1.0% R.O.
Zero balance	±2% of R.O.
Terminal resistance	350Ω ± 5%
Temperature range, compensated	0℃~40℃
Temperature range, safe	-10℃~60℃
Temperature effect, on zero balance	±2%R.O / 10℃
Terminal resistance output	±2%LOAD / 10℃
Insulation resistance bridge/case	2000㏁
Electrical connenction	φ1.6 X 4Core x 3m
Safe overload	120% R.C.
Material	Aluminum(1kgf,2kgf) / Stainless steel(5kgf,10kgf,20kgf)

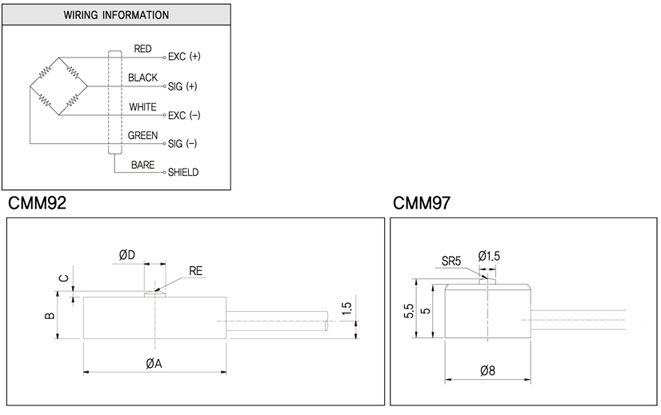

치수 사항 표
Capacity	ΦA	B	C	ΦD	E
1kgf ~ 5kgf	12	4	0.5	1.8	2
10kgf ~ 20kgf	15	4	0.5	2.5	4

★Specifications are subiect to change without notice.
