| • 측정 범위: 10 ~ 100mm stroke • Resolution(분해능): 무한대 • Displacement speed: 10m/sec • Independent Linearity(직선성): 0.1% • 보호등급 : IP 40 • 제품 수명: 100x106 operations |

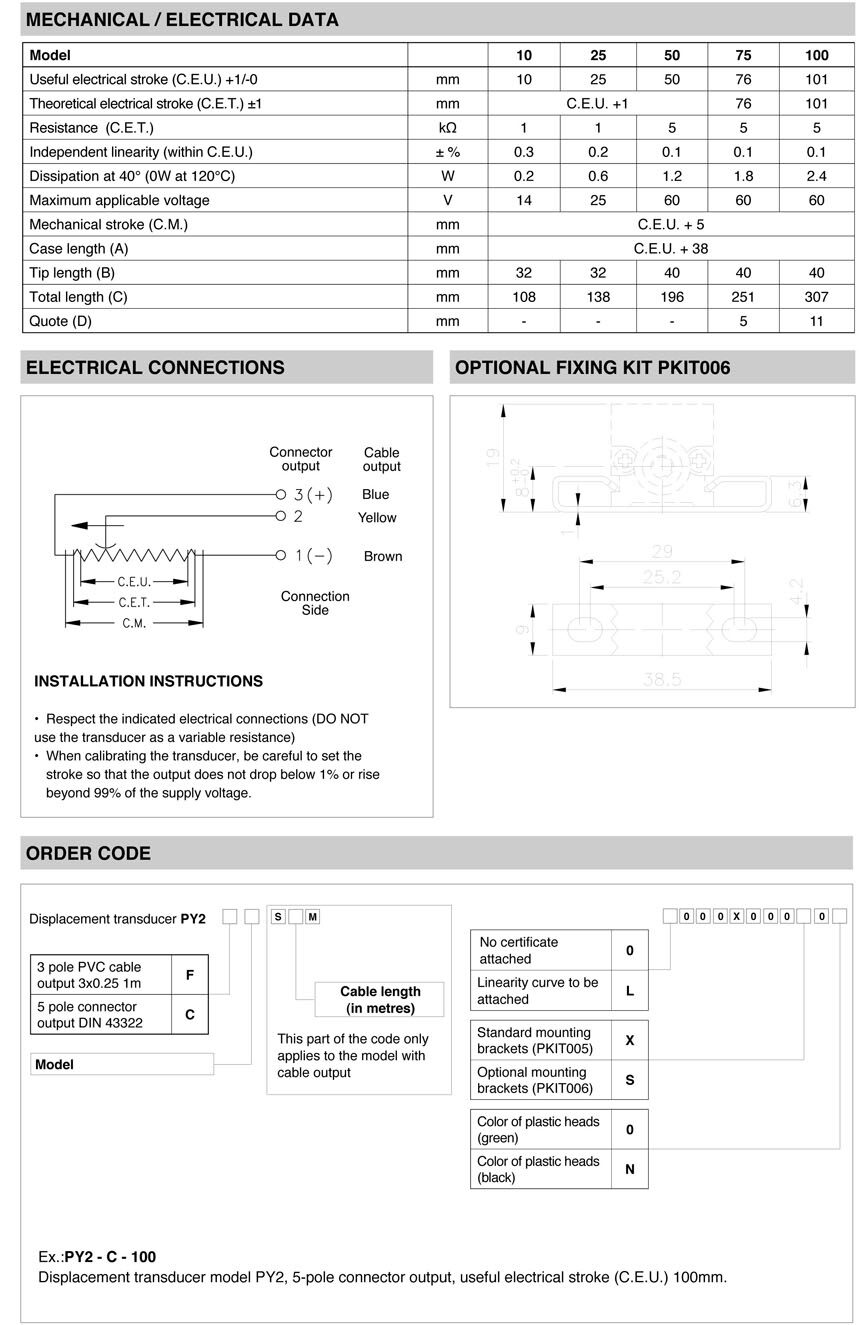

| Specifications | 10 | 25 | 50 | unit |
|---|---|---|---|---|
| Useful electrical stroke(C.E.U.) +1/-0 | 10 | 25 | 50 | ㎜ |
| theoretical electrical stroke(C.E.T.) ±1 | C.E.U. + 1 | ㎜ | ||
| Resistance (C.E.T.) | 1 | 1 | 5 | ㏀ |
| Independent linearity (within C.E.U.) | 0.3 | 0.2 | 0.1 | ± % |
| Dissipation at 40° (0W at 120°C) | 0.2 | 0.6 | 1.2 | W |
| Maximum applicable voltage | 14 | 25 | 60 | V |
| Mechanical stroke (C.M.) | C.E.U. + 5 | ㎜ | ||
| Case length (A) | C.E.U. + 38 | ㎜ | ||
| Tip length (B) | 32 | 32 | 40 | ㎜ |
| Total length (C) | 108 | 138 | 196 | ㎜ |

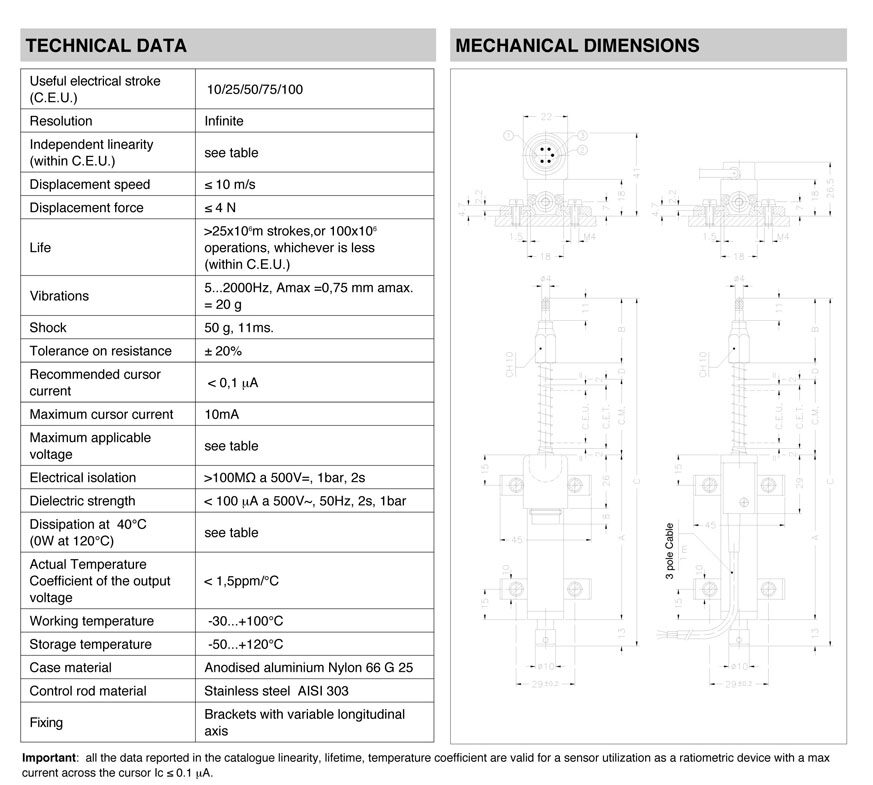

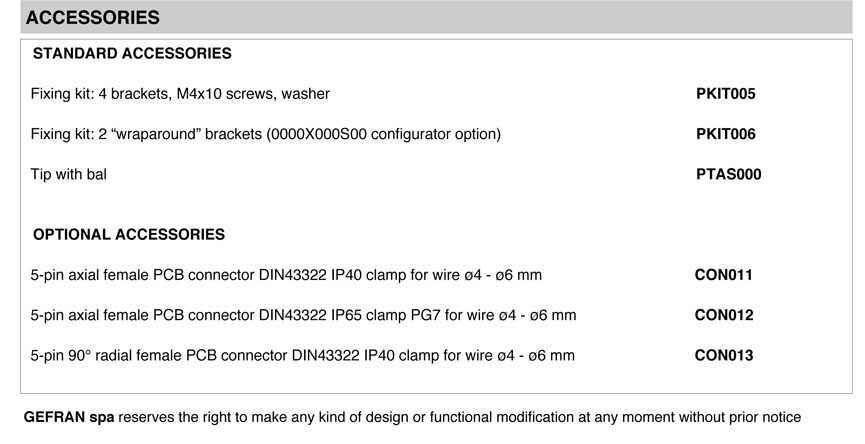

| Specifications | Accuracy |
|---|---|
| Useful electrical stroke (C.E.U.) | 10/25/50 |
| Independent linearity(within C.E.U.) | see table |
| Displacement speed | ≤ 10 m/s |
| Displacement force | ≤ 4N |
| Vibrations | 5...2000Hz, Amax =0,75 mm amax. = 20 g |
| Shock | 50 g, 11ms. |
| Tolerance on resistance | ± 20% |
| Recommended cursor current | < 0,1 mA |
| Maximum cursor current | 10mA |
| Maximum applicable voltage | see table |
| Electrical isolation | >100MΩ at 500V=, 1bar, 2s |
| Dielectric strength | < 100μA at 500V~, 50Hz, 2s, 1bar |
| Dissipation at 40°C (0W at 120°C) | see table |
| Temp. Coeff. of the resistance | -200 ± 200ppm/°C |
| Actual Temperature Coefficient of the output voltage | < 1,5ppm/°C |
| Working temperature | -30...+100°C |
| Storage temperature | -50...+120°C |
| Case material | Anodised aluminium Nylon 66 GV 40 |
| Control rod material | Stainless steel AISI 303 |
| Fixing | Brackets with variable longitudinal axise |
