Displacement Transducers

Dacell is providing ultra-precision load cells and various weighting and measuring products,
which can be used in various fields of industries, based on 20 years of experiences in manufacturing
of weighing and measuring products and with own superior technologies.

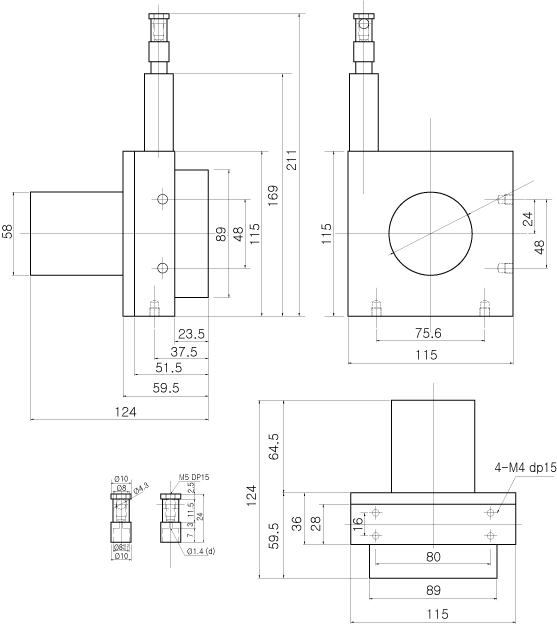

CHN-5000
  • Measurment of moving distance, position, rotation angle level by using wire.
  • Widely applied to position control of various facilities and structures.
  • It is a resistance output & Voltage output
  • Current output 4 to 20 mA signal output (Option)
WP Editor :

  • Measurment of moving distance, position, rotation angle level by using wire.

  • Widely applied to position control of various facilities and structures.

  • It is a resistance output & Voltage output

  • Current output 4 to 20 mA signal output (Option)

SPECIFICATION
Full stroke ranges 5000 mm
Combined error ≤0.25% R.O.
Repeatability ≤0.25% R.O.
Creep(30min) ≤0.25% R.O.
Zero balance ≤0.5% F.S.
Measuring cable Ø0.6 stainless steel (5,000 mm :Ø1.0)
Power supply 5V, 10V DC (Max 24V DC)
Output signal Voltage divider, Current, mili Voltage
Resistance range 0.5kΩ ~ 10kΩ
Insulation resistance bridge  1000MΩ
Temperature effect on zero balance ≤0.2% R.O. / 10℃
Temperature range, safe 0 ~ 60℃
Cable length Ø5 Shield 1m


※ Specifications are subject to change without notice.
